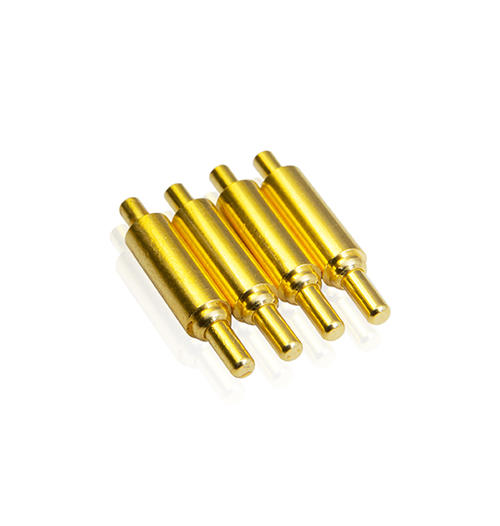

Integrated Circuit Testing Probes

　　Integrated circuit (IC) testing probes are specialized tools used to test the functionality and performance of integrated circuits, which are the heart of modern electronic devices. These probes are designed to make precise electrical connections to the pins or pads of ICs, enabling the testing of various parameters, including electrical characteristics, signal integrity, and functionality.

　　The construction of IC testing probes is highly sophisticated to meet the stringent requirements of IC testing. The probe tips are often extremely fine - pitched to match the small size of IC pins or pads. Advanced manufacturing techniques, such as micro - machining, are used to produce tips with diameters as small as a few micrometers. Materials with high electrical conductivity and good wear resistance, like gold - plated tungsten or platinum - iridium alloys, are commonly used for the tips to ensure reliable electrical contact and long - term durability.

　　The shaft of IC testing probes is designed to provide mechanical stability and precise positioning. It is typically made of high - strength, low - thermal - expansion materials to minimize any potential movement or deformation that could affect the accuracy of the test. The spring mechanism in IC testing probes is carefully calibrated to apply an optimal contact force. This force is crucial as it needs to be strong enough to maintain a stable electrical connection but gentle enough not to damage the delicate IC pins or pads, especially for fine - pitch and fragile ICs.

　　IC testing probes are used in a variety of testing scenarios. In wafer - level testing, probes are used to test individual ICs on a semiconductor wafer before dicing. This allows for early detection of defective ICs, reducing the cost and waste associated with processing faulty chips further. In final - test applications, IC testing probes are used to test packaged ICs on printed circuit boards or in test sockets. They play a vital role in ensuring that the ICs meet the required specifications and perform as expected in real - world applications.

　　With the continuous advancement of IC technology, such as the development of smaller and more complex chips, the demand for high - performance IC testing probes is increasing. Manufacturers are constantly researching and developing new materials, designs, and manufacturing processes to improve the precision, reliability, and lifespan of IC testing probes. Additionally, the integration of advanced automation and robotics in IC testing systems is also driving the need for probes that can work seamlessly with these high - tech testing platforms.
