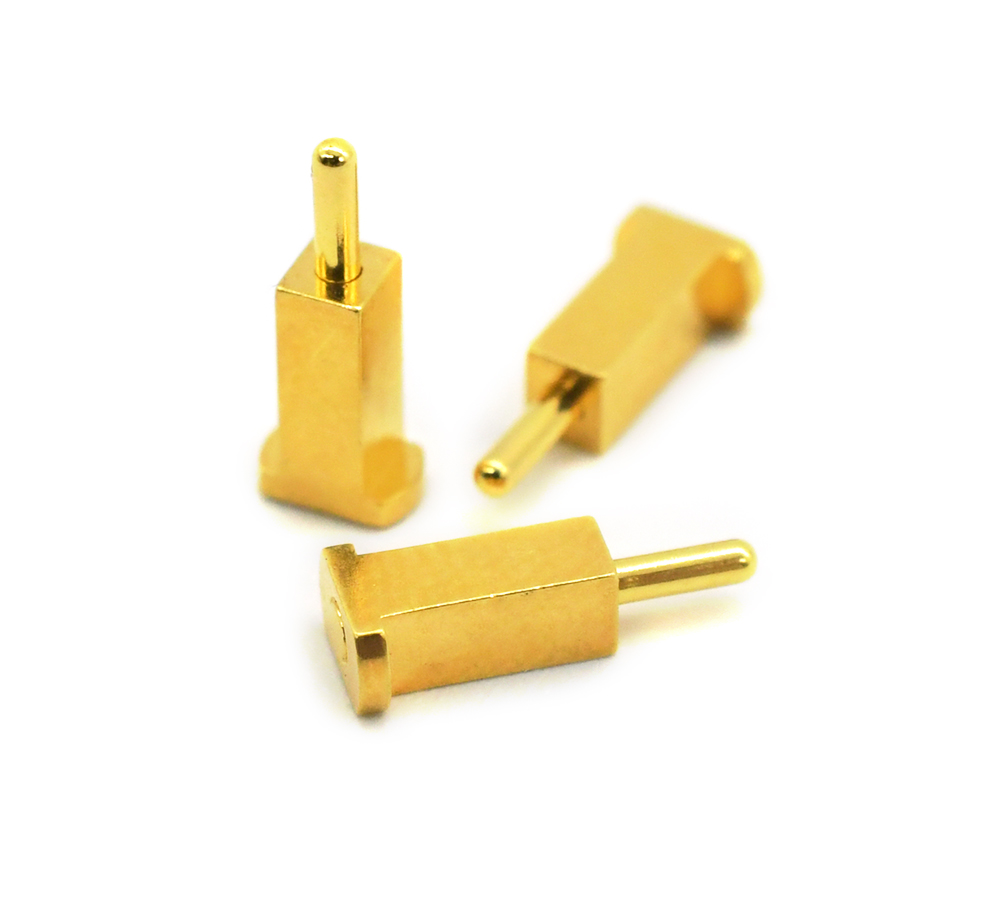

Influence of Gold Plating Thickness of Pogo Pins on Performance

　　The gold plating thickness of Pogo Pins has a profound impact on their electrical, mechanical, and environmental performance, making it a key factor in the design and application of these connectors.

　　From an electrical perspective, gold is an excellent conductor with low electrical resistance and good oxidation resistance. A thicker gold plating layer reduces the contact resistance between the Pogo Pin and the mating surface. When the gold plating is thin, the underlying base metal may be more likely to come into contact with the mating surface over time, especially after repeated mating cycles. This can increase the contact resistance, leading to signal degradation and power loss. For example, in high - speed data transmission applications where signal integrity is crucial, Pogo Pins with a gold plating thickness of at least 3 - 5 microns are often used to ensure stable and reliable electrical connections.

　　In terms of mechanical performance, the gold plating layer provides a certain degree of wear resistance. During the mating and unmating processes, the Pogo Pin experiences friction with the mating surface. A thicker gold plating can withstand more wear, preventing the base metal from being exposed prematurely. This extends the service life of the Pogo Pin. If the gold plating is too thin, it may wear off quickly, resulting in reduced contact quality and potential mechanical failure. For applications with a large number of mating cycles, such as in portable devices that are frequently connected and disconnected, a relatively thick gold plating of 5 - 8 microns is recommended to ensure long - term mechanical reliability.

　　The gold plating thickness also affects the environmental resistance of Pogo Pins. Gold is highly resistant to corrosion from moisture, oxygen, and many chemicals. A thicker gold plating layer provides better protection for the base metal, preventing oxidation and corrosion. In humid or corrosive environments, Pogo Pins with a sufficient gold plating thickness can maintain their performance for a longer time. Without adequate protection, the base metal may corrode, which not only degrades the electrical conductivity but also weakens the mechanical structure of the Pogo Pin. Therefore, in outdoor or industrial applications where the connectors are exposed to harsh environments, a gold plating thickness of 8 - 10 microns or more may be necessary.
