Welding Machine Current Detection: High-Current Probes

　　In the realm of welding, precise current detection is of utmost importance as it directly impacts the quality and integrity of welds. High-current probes play a crucial role in this process. These probes are designed to accurately measure the substantial currents flowing through welding machines, which can range from dozens to thousands of amps during operation.

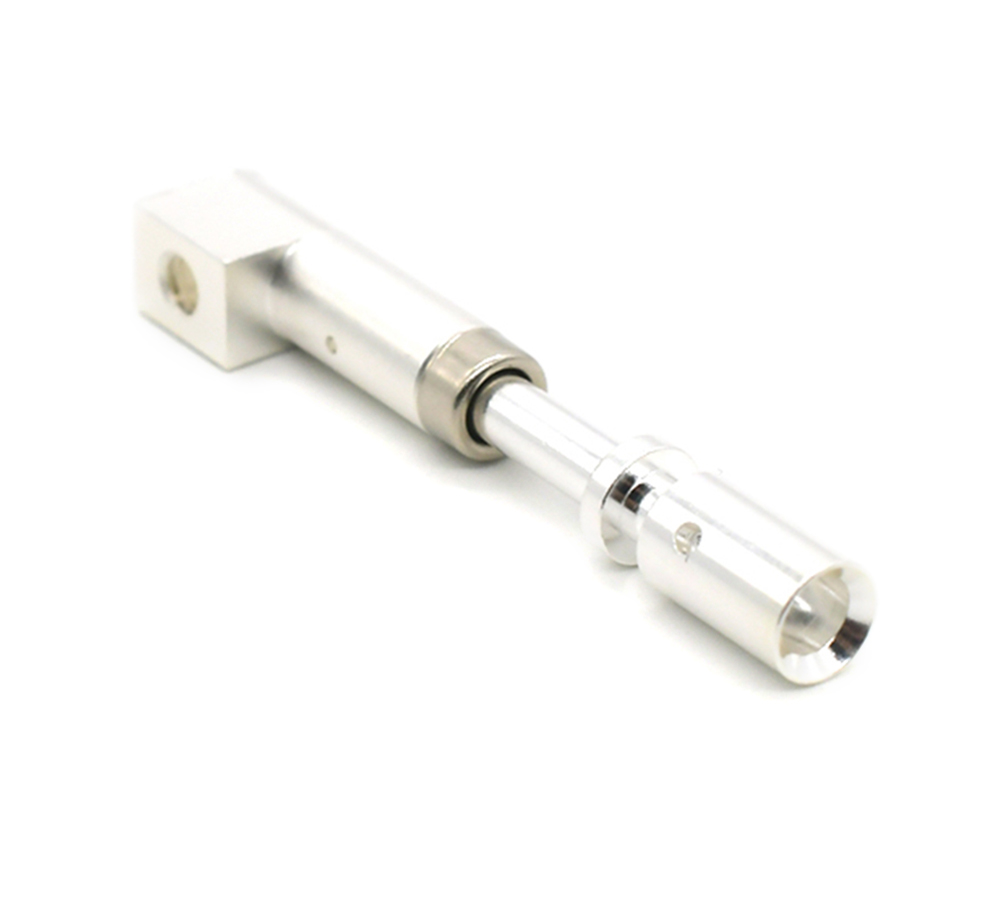

　　The design of high-current probes for welding applications is quite sophisticated. They often feature a large spring-force contact mechanism, capable of exerting forces of up to a dozen kilograms. This robust contact design ensures a stable and reliable connection with the high-current conductors in the welding circuit. The core function of these probes is to convert the high currents into smaller, more manageable voltage signals. This conversion allows for easy measurement using standard electrical test equipment such as digital multimeters or oscilloscopes. For example, a 200-amp high-current probe can precisely measure currents in high-power welding setups, providing valuable data for weld quality analysis.

　　Safety is a paramount consideration when dealing with high-current probes for welding. Since they come into direct contact with high currents, they are engineered with excellent insulation properties. This insulation serves as a safeguard against electric shock hazards for the operators and helps prevent damage to other electrical equipment in the vicinity. Additionally, some probes are equipped with safety features like overheating protection and current inrush prevention mechanisms. For instance, temperature sensor pins may be integrated into the probe to monitor its operating temperature. If the temperature exceeds a safe threshold, the probe can automatically adjust its performance or send out an alert, ensuring safe operation even in demanding welding environments.

　　The accuracy of high-current probes is essential for ensuring the quality of welds. A high-quality probe can provide measurements accurate to multiple decimal places, enabling welders and engineers to precisely monitor and control the welding current. This accuracy is critical because even slight variations in the welding current can lead to significant differences in the weld bead shape, penetration depth, and overall strength of the weld. By accurately measuring the current, welders can make real-time adjustments to the welding parameters, such as voltage, wire feed speed, and travel speed, to achieve optimal weld quality.

　　Moreover, high-current probes for welding are often designed to be durable and reliable. They need to withstand the harsh conditions present in welding workshops, including high temperatures, vibrations, and exposure to welding spatter. Constructed from high-quality materials, these probes can maintain their performance over extended periods of use. Their durability not only reduces the need for frequent replacements but also ensures consistent and reliable current measurement, which is vital for maintaining the quality of welded products in various industries, from automotive manufacturing to construction and aerospace.
