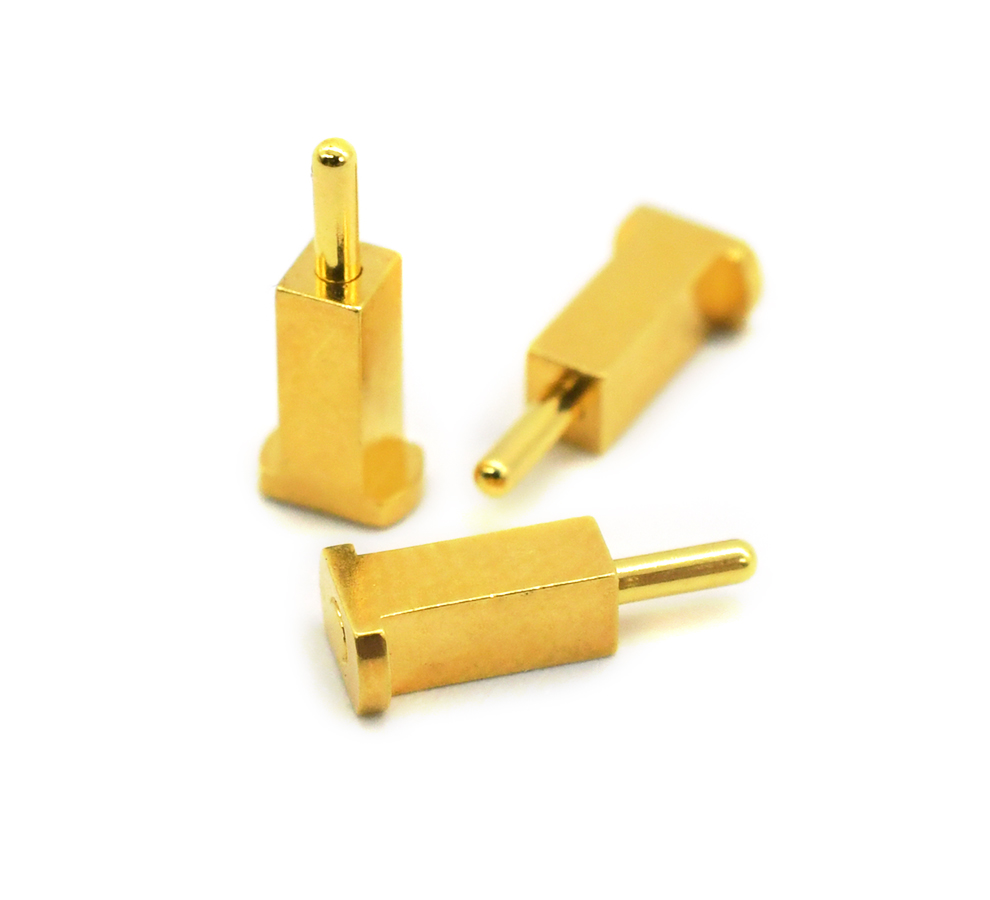

Technical Requirements of Mobile Phone Antenna Pogo Pins

　　Mobile phone antenna pogo pins play a crucial role in establishing reliable electrical connections for antenna systems, ensuring seamless communication signals. Their manufacturing processes are subject to stringent technical requirements.

　　Firstly, material selection is of utmost importance. The pins are typically made from high - quality metals such as beryllium copper or phosphor bronze due to their excellent electrical conductivity, durability, and elasticity. These materials must meet specific international standards for purity and composition to ensure consistent performance. The plating on the pogo pins, usually gold or nickel - gold, serves multiple purposes, including corrosion resistance, reducing contact resistance, and enhancing signal transmission quality. The thickness of the plating layer must be precisely controlled within a narrow tolerance range, often measured in micrometers, to ensure reliable and long - lasting connections.

　　Secondly, dimensional accuracy is a key factor. The overall length, diameter of the pin, spring, and barrel must be manufactured with extremely high precision. Even a minor deviation in dimensions can lead to poor contact, intermittent connections, or even mechanical failures. For example, if the pin diameter is slightly larger than the design specification, it may not fit properly into the mating socket, causing insertion force issues. On the other hand, a smaller diameter may result in insufficient contact pressure, leading to signal loss.

　　Moreover, mechanical performance requirements are also critical. Pogo pins should be able to withstand a certain number of mating and unmating cycles without significant degradation in performance. The spring inside the pogo pin must have consistent spring force throughout its service life. This spring force is essential for maintaining proper contact pressure between the pin and the mating surface, which directly affects signal integrity. Additionally, pogo pins need to be able to endure various environmental conditions, such as temperature fluctuations, humidity, and vibration, commonly encountered during mobile phone use, without compromising their functionality.
