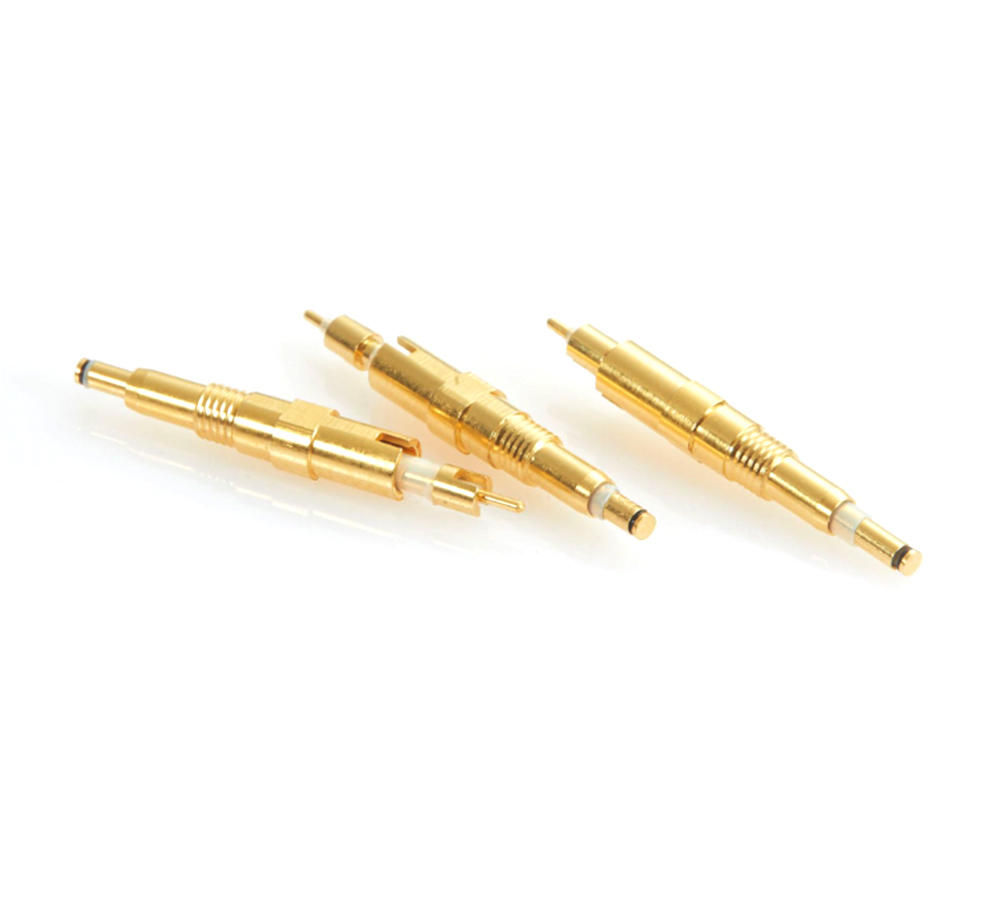

Pogo Pin for Laptop Docking Stations

　　Laptop docking stations have become indispensable for users who need to connect their laptops to multiple peripherals, such as external monitors, keyboards, mice, and printers, in a more organized and efficient manner. Pogo Pins play a vital role in laptop docking stations, providing a reliable and high - performance connection solution.

　　The primary function of Pogo Pins in laptop docking stations is to establish a secure electrical connection between the laptop and the dock. When a laptop is placed on the docking station, the Pogo Pins on the dock make contact with the corresponding pads on the laptop's bottom or side. This connection enables the transfer of various types of data, including video signals for external displays, audio signals for speakers, and data for connected peripherals. At the same time, Pogo Pins can also supply power to the laptop, eliminating the need for a separate power adapter when using the docking station.

　　One of the significant advantages of using Pogo Pins in laptop docking stations is the high - density connection they can provide. With their small size, Pogo Pins can be packed closely together, allowing for a large number of electrical connections in a limited space. This is crucial for modern laptop docking stations, which need to support multiple functions and a wide range of peripherals. For example, a high - end docking station may need to handle multiple video outputs, high - speed data transfers, and power delivery, all of which can be efficiently managed through a well - designed Pogo Pin connection system.

　　The reliability of Pogo Pins is also a key factor in their application in laptop docking stations. The spring - loaded mechanism ensures that the pins maintain a consistent contact pressure, even when the laptop is jostled or moved slightly while docked. This helps to prevent intermittent connections or data loss, which can be extremely frustrating for users, especially in a professional work environment. Additionally, Pogo Pins are designed to withstand a large number of connection and disconnection cycles, ensuring the long - term durability of the docking station.

　　Furthermore, Pogo Pins can support a variety of data transfer protocols and power delivery standards. They can handle high - speed data transfer rates required for modern applications, such as 4K video streaming and large - file transfers. In terms of power delivery, Pogo Pins can be configured to provide sufficient power to charge the laptop and power connected peripherals, making the docking station a one - stop solution for users' connectivity and power needs.
