Pogo Pin Tailorable height

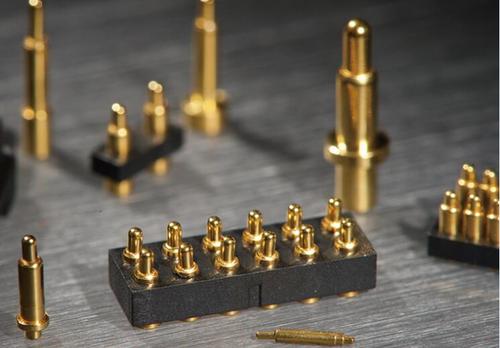

Pogo pins, also known as spring - loaded pins, are widely used in various electronic applications due to their reliable electrical connectivity and mechanical functionality. One of the key features that make pogo pins highly versatile is their tailorable height, which allows for customization to meet the specific requirements of different devices and assembly processes.

The tailorable height of pogo pins is achieved through a combination of design and manufacturing techniques. The basic structure of a pogo pin consists of a plunger, a spring, and a barrel. The height of the pogo pin can be adjusted by modifying the length of the plunger, the compression of the spring, or the overall length of the barrel. For example, in applications where a low - profile connection is required, such as in ultra - thin mobile devices or wearables, pogo pins with shorter plungers and barrels can be designed. These low - height pogo pins ensure that the overall thickness of the device remains minimal while still providing a secure and reliable electrical connection.

On the other hand, in applications that involve larger components or require a certain amount of clearance for proper alignment, pogo pins with taller heights can be customized. Taller pogo pins can accommodate differences in component heights, ensuring that the electrical connection is maintained even when there are variations in the assembly. For instance, in industrial control systems where multiple boards with different thicknesses need to be interconnected, tailorable - height pogo pins can be adjusted to bridge the height gaps and establish a stable electrical link.

The process of tailoring the height of pogo pins also takes into account the mechanical and electrical performance requirements. A change in height can impact the spring force exerted by the pogo pin, which in turn affects the contact resistance and the durability of the connection. Therefore, precise engineering and testing are essential to ensure that the customized pogo pin height does not compromise the electrical conductivity or the mechanical stability. Manufacturers often use advanced computer - aided design (CAD) software to model different height configurations and simulate their performance before production. This allows them to optimize the design and select the most suitable height for a particular application.

Moreover, the tailorable height feature of pogo pins provides flexibility during the product development cycle. Designers can experiment with different heights to find the optimal solution for their specific device, and then easily modify the pogo pin design if changes are required during prototyping or production. This adaptability helps in reducing development time and costs, as well as improving the overall quality of the final product.  the tailorable height of pogo pins is a crucial aspect that enables them to be used in a wide range of applications, offering a high degree of customization and adaptability to diverse design and functional requirements.
