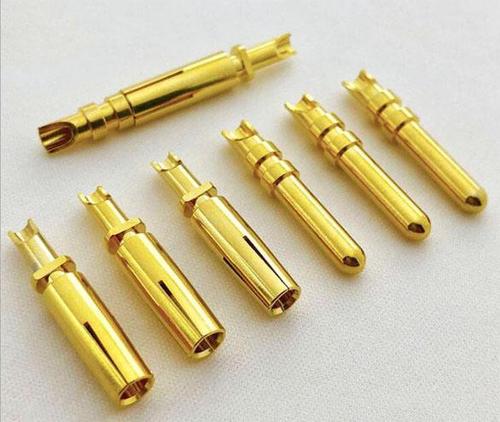

Pogo Pin Contact tip shape

　　The contact tip shape of a Pogo Pin is a critical design element that significantly impacts its electrical performance, mechanical durability, and overall functionality in various electronic applications. Different tip shapes are engineered to meet specific requirements, ensuring reliable electrical connections and efficient power or signal transmission.

　　One of the most common contact tip shapes is the round tip. Round - tipped Pogo Pins offer several advantages. Their smooth, circular surface provides a relatively large contact area, which helps in reducing electrical resistance and ensuring a stable electrical connection. This shape is ideal for applications where a consistent and reliable electrical contact is needed, such as in battery charging connectors or simple data transfer interfaces. The rounded edges also minimize the risk of scratching or damaging the mating contact surfaces, enhancing the longevity of both the Pogo Pin and the connected device. Additionally, round - tipped Pogo Pins are often easier to manufacture and assemble, contributing to cost - effectiveness in mass - production scenarios.

　　Another popular tip shape is the pointed tip. Pointed - tip Pogo Pins are designed to penetrate through thin layers of oxidation, dirt, or contaminants that may accumulate on the contact surfaces over time. This makes them highly suitable for applications in harsh environments or where the contact surfaces are prone to degradation. In aerospace or automotive electronics, for example, where components may be exposed to vibration, moisture, or extreme temperatures, pointed - tip Pogo Pins can maintain a reliable electrical connection by piercing through any surface imperfections. However, the sharp tip also increases the risk of damaging delicate contact pads, so careful design and application are required to avoid such issues.

　　Flat - tipped Pogo Pins are yet another variant. These pins provide a flat, wide contact surface, which can distribute the contact pressure evenly across the mating surface. This even pressure distribution helps in reducing the stress on the contact area, making flat - tipped Pogo Pins suitable for applications where the contact pads are made of soft or fragile materials. In high - density circuit board connections or in the assembly of sensitive electronic components, flat - tipped Pogo Pins can offer a more gentle yet secure connection.

　　Some specialized Pogo Pin designs feature unique tip shapes, such as conical, spherical - domed, or grooved tips. Conical tips can combine the benefits of both round and pointed tips, providing a larger contact area while still having the ability to penetrate minor contaminants. Spherical - domed tips offer enhanced mechanical stability and can better withstand misalignment between the Pogo Pin and the mating contact. Grooved tips, on the other hand, can be used to improve the grip or to channel away debris, further enhancing the reliability of the electrical connection. The choice of Pogo Pin contact tip shape depends on a multitude of factors, including the application environment, the nature of the mating contacts, and the required electrical and mechanical performance, making it a crucial consideration in the design and selection of Pogo Pins.
