Pogo Pin Connector Structure

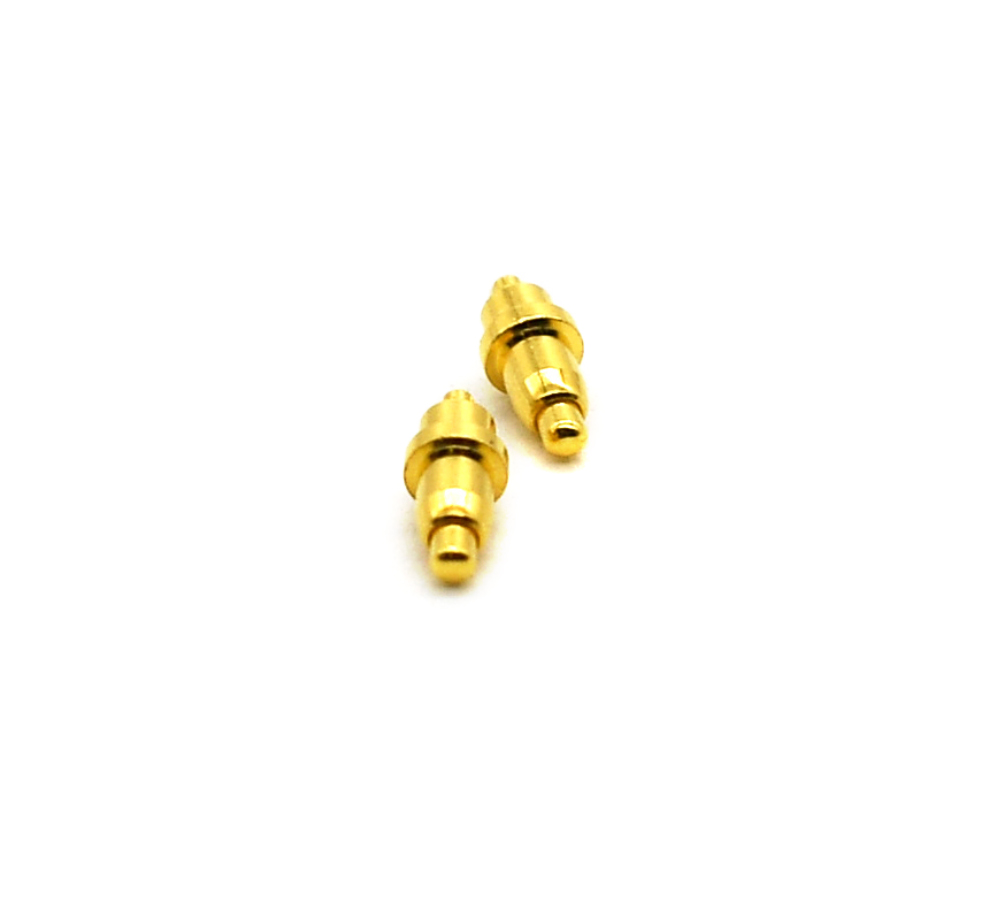

　　The structure of a Pogo Pin connector is designed to provide a reliable and stable electrical connection in various applications. A Pogo Pin connector typically consists of several key components, including the pin, spring, plunger, and housing. Each of these components plays a crucial role in ensuring the proper functioning of the connector.

　　The pin is the central component of the Pogo Pin connector and is responsible for establishing the electrical connection. It is usually made of a conductive material, such as phosphor bronze or beryllium copper, which offers excellent electrical conductivity and durability. The pin is designed to be spring-loaded, allowing it to maintain constant contact with the mating surface even in the presence of mechanical stress or vibration.

　　The spring is a critical component of the Pogo Pin connector, providing the necessary force to keep the pin in contact with the mating surface. The spring is typically made of a resilient material, such as stainless steel or phosphor bronze, which can withstand repeated compression and extension cycles without losing its elasticity. The spring force is carefully calibrated to ensure that the pin maintains a consistent and reliable connection while minimizing the risk of damage to the mating surface.

　　The plunger is the part of the Pogo Pin connector that makes direct contact with the mating surface. It is usually made of a conductive material and is designed to be slightly larger than the pin, allowing it to compress the spring when pressed against the mating surface. The plunger may also be coated with a protective material, such as gold or nickel, to improve its durability and resistance to corrosion.

　　The housing is the outer shell of the Pogo Pin connector and provides structural support and protection for the internal components. It can be made of various materials, including plastic or metal, depending on the specific application requirements. The housing may also include features such as alignment guides or retention clips to ensure proper positioning and secure attachment of the connector.

　　the structure of a Pogo Pin connector is designed to provide a robust and reliable electrical connection in a wide range of applications. Its spring-loaded design and durable construction make it an ideal choice for use in automated testing equipment, PCB testing, and other applications where temporary and reliable electrical connections are required.
