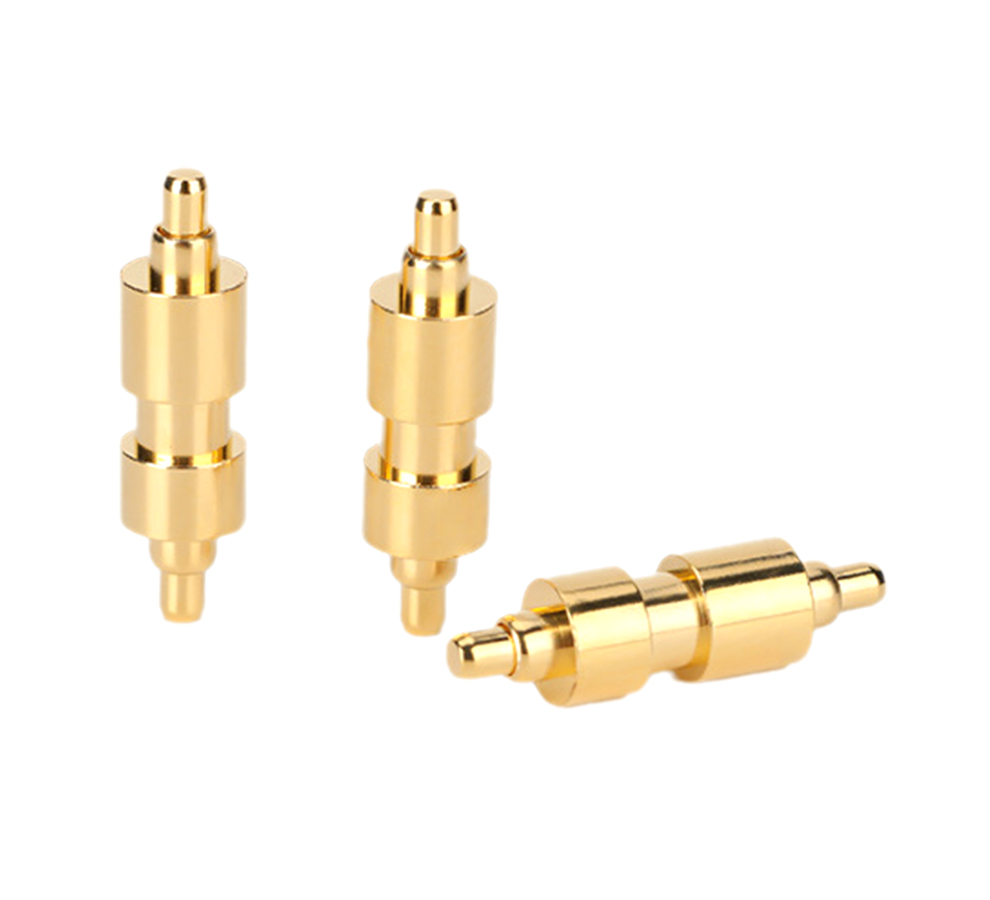

Performance Testing Methods of Single-Pin Spring Pogo Pins

　　To ensure the reliability and quality of single-pin spring pogo pins, a series of performance testing methods are employed. Electrical performance testing is one of the most critical aspects. This includes measuring the contact resistance, which should be as low as possible to ensure efficient electrical signal transmission. Contact resistance is typically measured using a precision multimeter or a specialized electrical testing instrument. The insulation resistance between the pin and the housing is also tested to ensure that there is no electrical leakage, which could cause malfunctions or safety hazards.

　　Mechanical performance testing focuses on evaluating the durability and functionality of the spring and the pin. Spring force testing is conducted to ensure that the pogo pin has the appropriate contact pressure. This is usually done using a force gauge to measure the force required to compress the spring to a specific length. Fatigue testing is another important mechanical test, where the pogo pin is subjected to repeated compression and relaxation cycles to simulate its lifespan. The number of cycles it can withstand without significant degradation in performance indicates its durability.

　　Environmental testing is essential to assess the pogo pin's ability to withstand various environmental conditions. Temperature cycling tests involve exposing the pogo pin to a range of temperatures, from extremely low to high, to evaluate its thermal stability. Humidity testing is used to determine the pogo pin's resistance to moisture, which can cause corrosion and electrical failures. Additionally, vibration and shock tests are performed to simulate the mechanical stresses that the pogo pin may encounter in its intended application, ensuring that it can maintain its functionality under dynamic conditions. These comprehensive performance testing methods help manufacturers ensure that single-pin spring pogo pins meet the required standards and specifications for various applications.
