Installation Methods of Pogo Pin in Electronic Devices

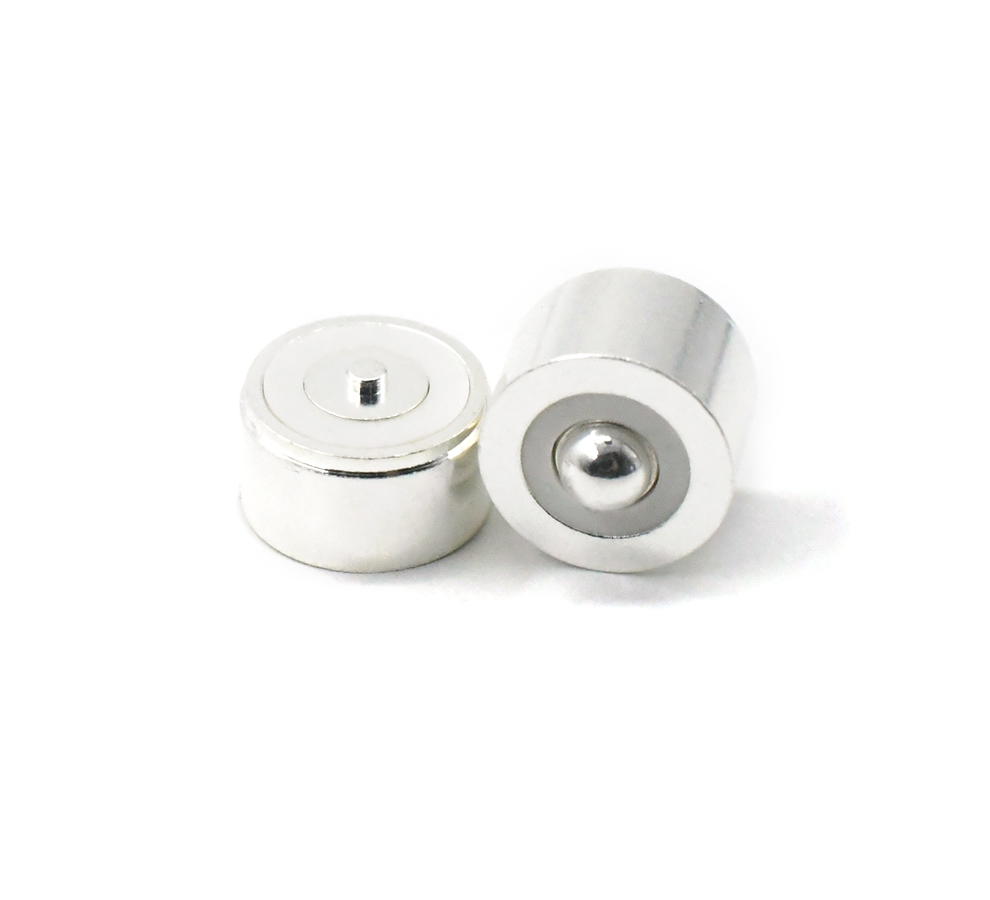

　　The installation of Pogo Pins in electronic devices is a meticulous process that requires careful consideration of various factors to ensure reliable electrical connections and the overall functionality of the device. There are several common installation methods, each with its own characteristics and applications.

　　One of the most prevalent methods is surface - mount technology (SMT). In SMT installation, Pogo Pins are soldered directly onto the surface of the printed circuit board (PCB). This process begins with applying solder paste to the designated pads on the PCB using a stencil. The Pogo Pins are then accurately placed onto the solder paste - coated pads using a pick - and - place machine. After placement, the PCB with the Pogo Pins is passed through a reflow oven, where the solder paste melts and solidifies, creating a strong and reliable electrical connection between the Pogo Pins and the PCB. SMT installation offers high precision, allowing for the placement of Pogo Pins in a dense and compact layout, which is ideal for modern, miniaturized electronic devices.

　　Another installation method is through - hole mounting. In this approach, the Pogo Pins are inserted into pre - drilled holes on the PCB. The pins are then soldered on the opposite side of the board, providing a more robust mechanical connection compared to SMT in some cases. Through - hole mounting is often used when the Pogo Pins need to withstand higher mechanical stress or when a more secure connection is required, such as in industrial - grade electronic devices or components that are frequently subjected to vibrations.

　　In addition, some Pogo Pins are installed using press - fit techniques. Press - fit installation involves inserting the Pogo Pin into a hole on the PCB without the use of solder. The pin is designed with a slightly larger diameter than the hole, creating an interference fit that provides both mechanical and electrical connection. This method is advantageous as it eliminates the need for soldering, reducing the risk of thermal damage to sensitive components and simplifying the assembly process in certain applications. Each installation method has its own advantages and is selected based on the specific requirements of the electronic device, including performance, durability, and manufacturing complexity.
