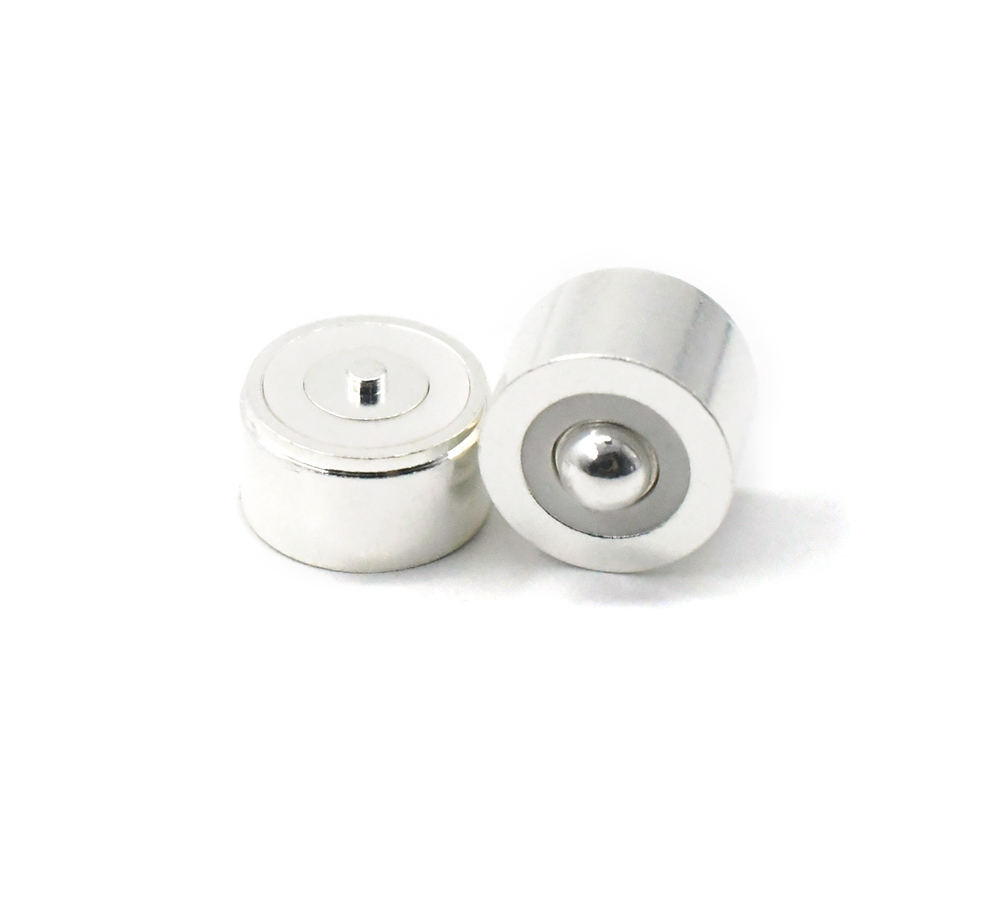

High - Current Pogo Pins for Electrical Testing Equipment

　　Electrical testing equipment often requires the use of high - current pogo pins to perform accurate and reliable tests on electrical components and systems. These pogo pins are designed to handle large amounts of current while maintaining stable electrical contact and minimizing electrical resistance, which is crucial for obtaining precise test results.

　　High - current pogo pins are typically constructed with materials that have excellent electrical conductivity, such as copper or beryllium copper alloys. These materials are chosen for their ability to carry high currents without overheating or experiencing significant voltage drops. The design of high - current pogo pins also takes into account factors such as contact area, contact force, and spring rate. A larger contact area helps to distribute the current more evenly, reducing the risk of hot spots and electrical arcing. A higher contact force ensures a more secure connection, while an appropriate spring rate allows for smooth insertion and extraction of the pins.

　　In electrical testing equipment, high - current pogo pins are used in a variety of applications. For example, in power supply testing, they are used to connect the test equipment to the power supply under test, allowing for the measurement of parameters such as voltage, current, and power. In circuit board testing, high - current pogo pins are used to make electrical contact with the test points on the circuit board, enabling the testing of components and the verification of circuit functionality. They are also used in battery testing, where they are used to connect the battery to the testing equipment for charging and discharging tests.

　　The reliability of high - current pogo pins is of utmost importance in electrical testing. Any failure or degradation of the pogo pin connections can lead to inaccurate test results, which can have serious consequences in the development, production, and quality control of electrical products. Therefore, high - current pogo pins are subject to rigorous testing and quality control procedures to ensure their performance and durability. These procedures may include electrical conductivity tests, contact resistance tests, thermal cycling tests, and mechanical stress tests.
