Connection Methods of PCB Spring Pins

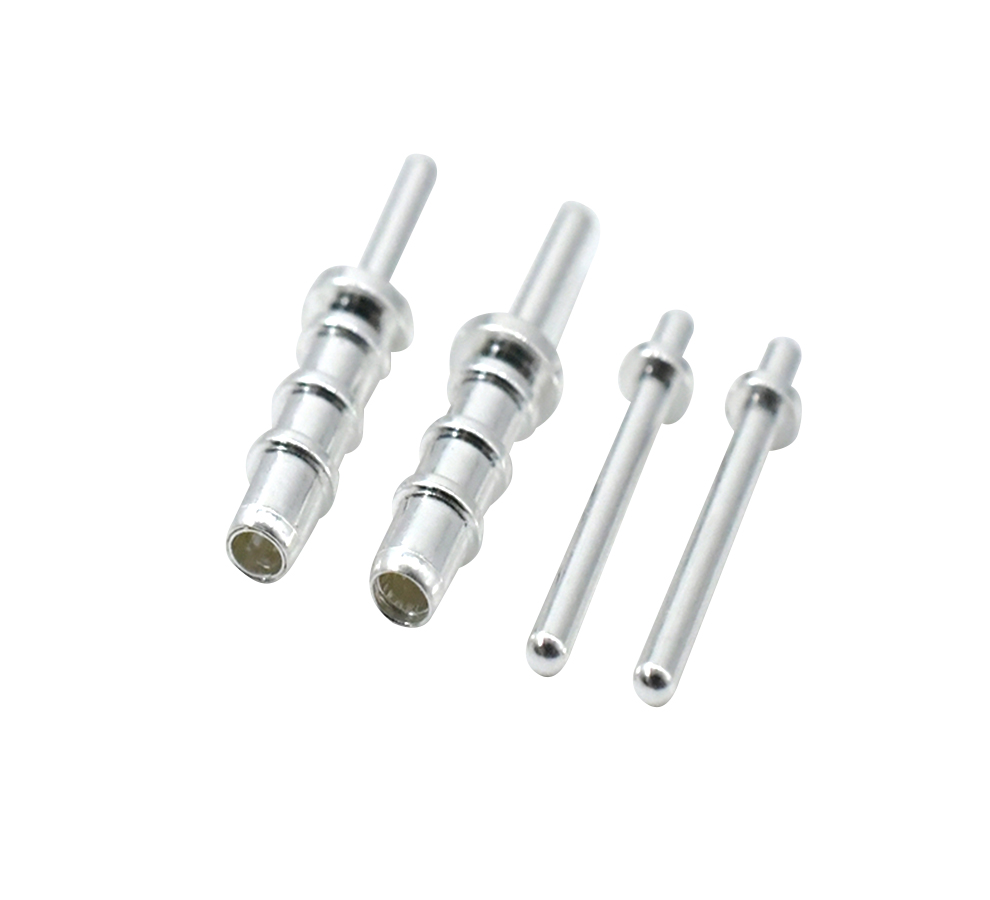

　　PCB spring pins, also known as pogo pins, serve as vital connectors in printed circuit boards (PCBs), facilitating electrical connections between different components. These pins offer a variety of connection methods, each tailored to specific application requirements, ensuring reliable and efficient electrical communication.

　　One common connection method is the surface - mount technology (SMT). In this approach, spring pins are soldered directly onto the surface of the PCB. The pins have a solderable base that adheres to the PCB's pads, creating a secure mechanical and electrical connection. SMT is widely used in modern electronics manufacturing due to its high - density assembly capabilities and compatibility with automated production lines. It allows for a compact design, enabling the integration of multiple spring pins in a small area of the PCB, which is essential for miniaturized electronic devices such as smartphones, tablets, and wearables.

　　Another connection method is through - hole mounting. Here, the spring pins are inserted into pre - drilled holes on the PCB, and their tips protrude from the other side. The pins are then soldered in place on the opposite side of the board. Through - hole mounting provides a robust connection, especially for applications that require higher mechanical strength and better heat dissipation. It is often used in power - intensive or high - reliability electronics, such as industrial control systems, automotive electronics, and aerospace equipment.

　　Spring pins can also be used in a press - fit connection. In this method, the pins are inserted into holes on the PCB without the need for soldering. The pins are designed with a slightly larger diameter than the hole, creating a tight interference fit. Press - fit connections offer advantages such as reduced assembly time, elimination of soldering - related defects, and the ability to be reworked easily. They are commonly employed in high - volume production environments where quick and reliable assembly is crucial.

　　For some applications, spring pins are used in a connector - based connection. They are integrated into connectors that can be plugged and unplugged from the PCB, providing a removable and reusable connection solution. This type of connection is ideal for devices that require frequent component replacement or upgrades, such as modular electronic systems, test equipment, and docking stations. The connector - based connection ensures easy maintenance and flexibility in the overall design of the electronic product.
