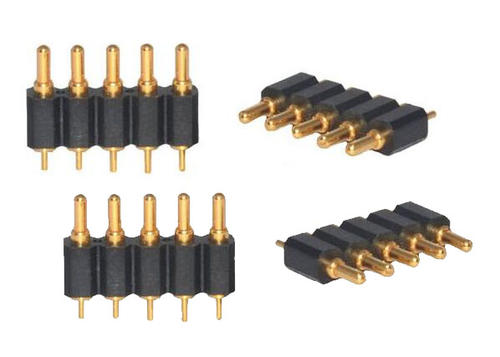

Automotive-Grade Pogo Pins

Automotive-grade Pogo Pins are specialized spring-loaded connectors designed to withstand the extreme and harsh conditions of automotive environments—including wide temperature fluctuations, vibration, shock, and exposure to chemicals (e.g., oil, fuel, road salt). Unlike consumer-grade Pogo Pins (which prioritize compactness and cost), automotive-grade models focus on long-term reliability (15+ years of service life), high current-carrying capacity, and compliance with automotive-specific standards, making them ideal for applications like in-vehicle infotainment (IVI) systems, battery management systems (BMS), and sensor connections (e.g., cameras, radar).

The defining characteristics of automotive-grade Pogo Pins stem from compliance with standards set by the International Organization for Standardization (ISO) and the Society of Automotive Engineers (SAE). Key performance requirements include: 1) Temperature Resistance: Operating ranges of -40°C to 125°C (and up to 150°C for under-hood applications) to withstand winter cold and engine heat. Materials like high-temperature-resistant plastics (e.g., PPS, PA66) for housings and nickel-gold plated brass or stainless-steel pins (to prevent corrosion at extreme temperatures) are used. 2) Vibration and Shock Resistance: Meeting ISO 16750-3 standards for vibration (5-2000Hz, 10g acceleration) and shock (50g for 11ms) to ensure stable connections in moving vehicles—critical for safety-related systems like ADAS (Advanced Driver Assistance Systems) sensors, where a loose connection could cause system failure. 3) Current and Voltage Handling: Supporting higher currents (5-30A) than consumer Pogo Pins (typically <1A) to power components like IVI screens or BMS modules, with low contact resistance (<30mΩ) to minimize power loss and heat generation.

Automotive-grade Pogo Pins also undergo rigorous durability testing, including 5000+ mating cycles (to handle maintenance or component replacement) and chemical resistance testing (per ISO 16750-5) to ensure they remain functional after exposure to engine oil, brake fluid, and road salt. A Tier 1 automotive supplier reported that using automotive-grade Pogo Pins in BMS reduced field failure rates by 80% compared to consumer-grade alternatives. Common applications include: 1) IVI Systems: Connecting touchscreens to main control units, where vibration resistance ensures consistent touch response. 2) BMS: Enabling reliable current monitoring in electric vehicle (EV) batteries, where high current capacity and corrosion resistance are critical. 3) Sensor Connections: Linking ADAS cameras or radar sensors to the vehicle’s ECU, where stable electrical contact is essential for accurate data transmission. For automotive manufacturers, automotive-grade Pogo Pins are a vital component in ensuring vehicle safety, performance, and longevity.
